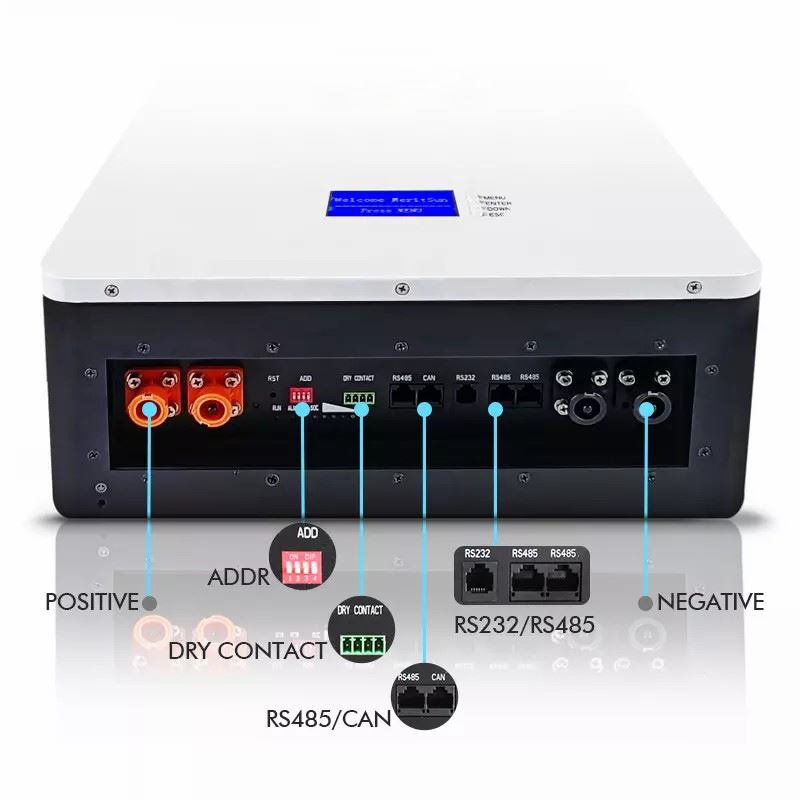

48v 100AH Wall Mounted Lifepo4

48v 100AH Wall Mounted Lifepo4

* Cycle life 6000 * 5 years warranty * Voltage 51.2V Capacity 200Ah * Charge current Standard charge: 0.5C Approx 3 Hour Rapid charge: 1C Approx 1.5 Hour * Operating temperature Charging:0°C ~ 45°C Discharging : -20°C ~60°C

GET QUOTE
Items
Specifications
Charge voltage
DC 58.4V
Nominal voltage
48V
Nominal capacity
100Ah
Energy
9.6KWh
Charge current
Standard charge（标准充电）: 0.5C Approx 3 Hour（约 3 小时）
Rapid charge（快速充电）: 1C Approx 1.5 Hour（约 1.5 小时）
Standard Charging method
0.5C.CC (constant current) charge to 58.4V, then CV(constant voltage 58.4V)
charge till charge current decline to 0.05C
Max. charge current
100A
Max. discharge current
200A
Max.Pulse Current
400A（3s）
Discharge cut-off voltage
40V
cell & Method
(3.2V100Ah)16S1P
Lison-200-202Ah
Operating temperature
Charging(充电):
0°C ~ 45°C
Discharging（放电） : -20°C ~60°C
Storage temperature
- 10°C ~ + 45°C
Battery Weight
Approx.：74.4 kg
Battery Dimension
483mm*463mm*243mm(W*H*D)
Battery outgoing voltage
48~54.4V
Thermal sol fire
extinguishing device
NO
