48v Lithium Ion Phosphate Battery

48v Lithium Ion Phosphate Battery

Model LFP100-48 Rated Voltage (V) 48V Rated Capacity (Ah) 100Ah Supply Ability 50000 Piece/Pieces per Month MOQ 1 Payment L/C, D/A, D/P, T/T, Western Union, MoneyGram, Alipay, WeChat pay, Paypal Approx Dimension (mm) 483*423*177mm Approx Weight (Kg) 43kg click the "Inquire Online" , you will get the best design solution for FREE! and The Best offer.

GET QUOTE
Items
Specifications
Charge voltage
DC 58.4V
Nominal voltage
51.1V
Nominal capacity
100Ah
Energy
5.12KWh
Charge current
Standard charge（标准充电）: 0.5C Approx 3 Hour（约 3 小时）
Rapid charge（快速充电）: 1C Approx 1.5 Hour（约 1.5 小时）
Standard Charging method
0.5C.CC (constant current) charge to 58.4V, then CV(constant voltage 58.4V)
charge till charge current decline to 0.05C
Max. charge current
50A
Max. discharge current
100A
Max.Pulse Current
150A（3s）
Discharge cut-off voltage
40V

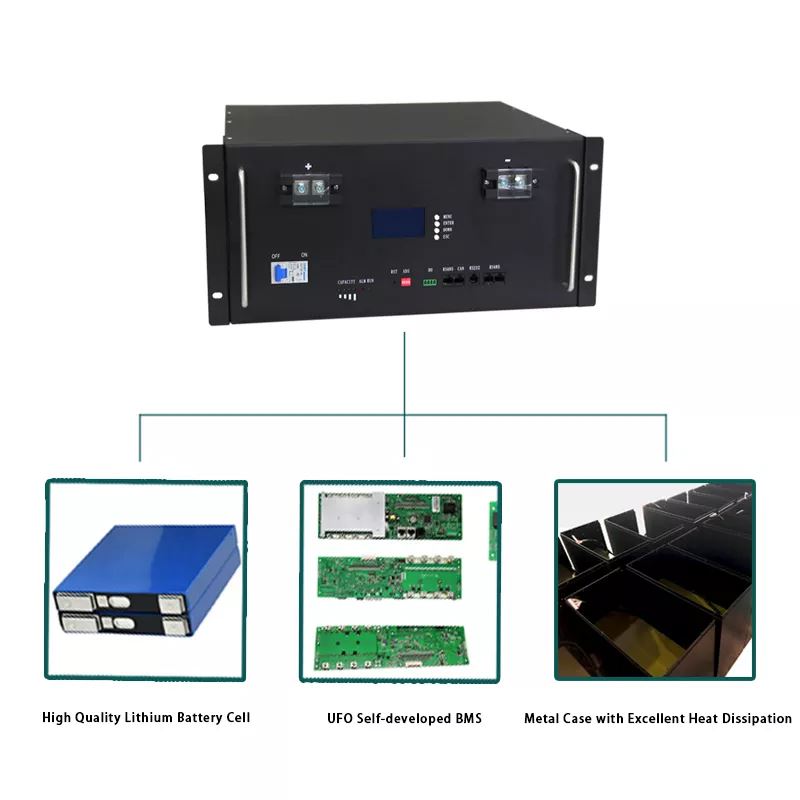

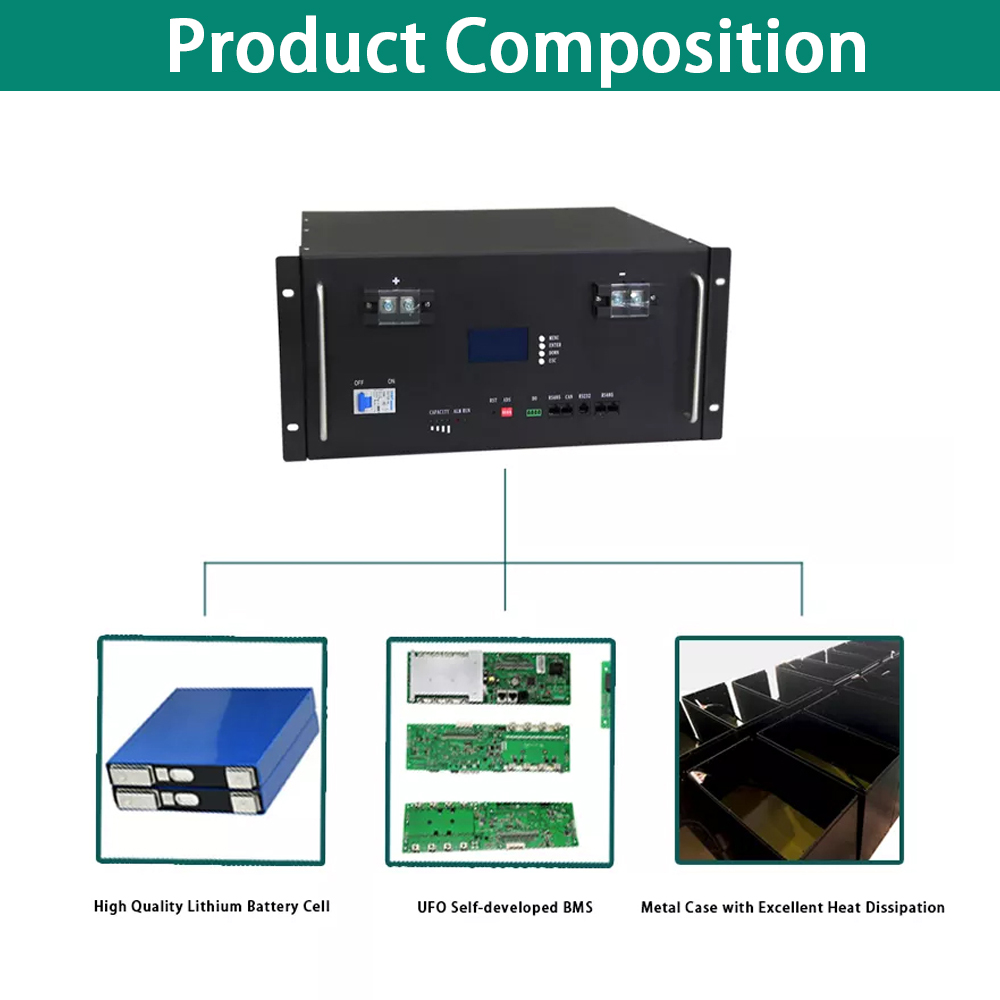

cell & Method
(3.2V100Ah)16S1P
中航-100Ah
Operating temperature
Charging(充电):
0°C ~ 45°C
Discharging（放电） : -20°C ~60°C
Storage temperature
- 10°C ~ + 45°C
Battery Weight
Approx.：43 kg
Battery Dimension
483mm*177mm*423mm(W*H*D)
Battery outgoing voltage
51.2~54.4V
Thermal sol fire
extinguishing device
NO
