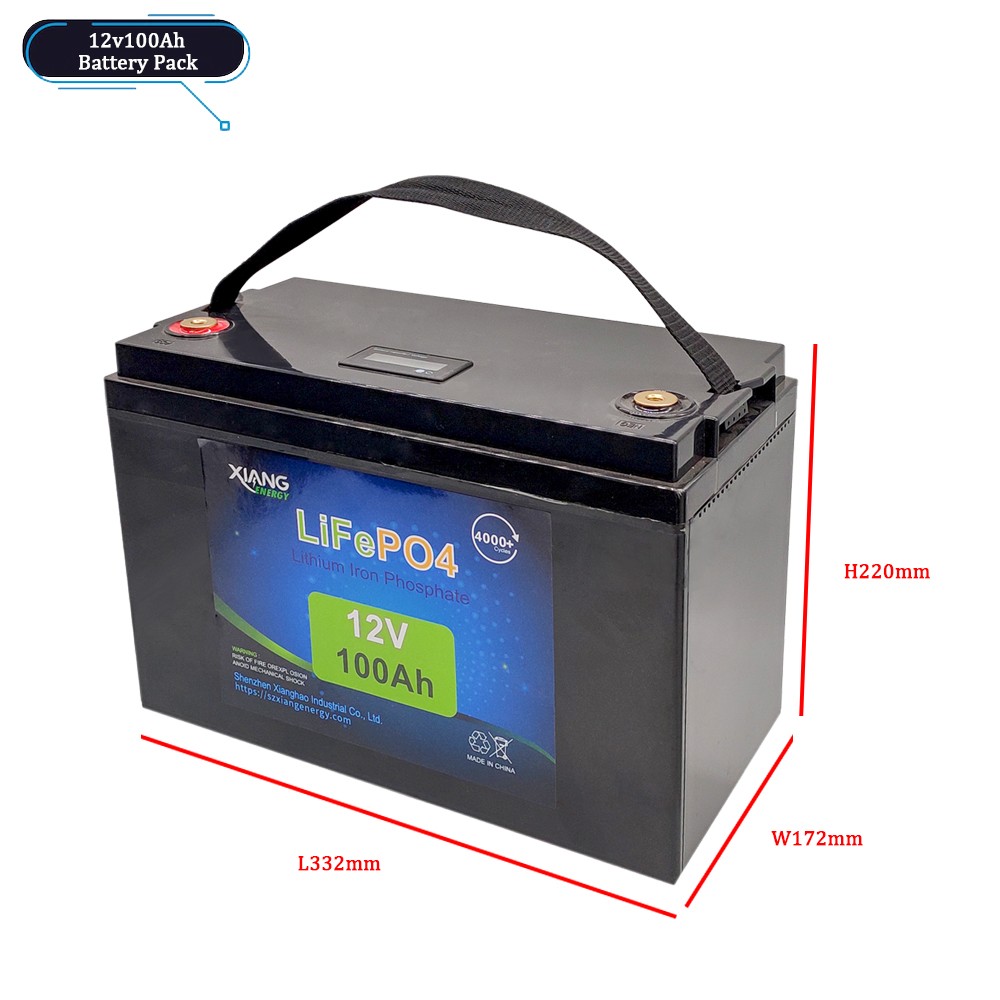

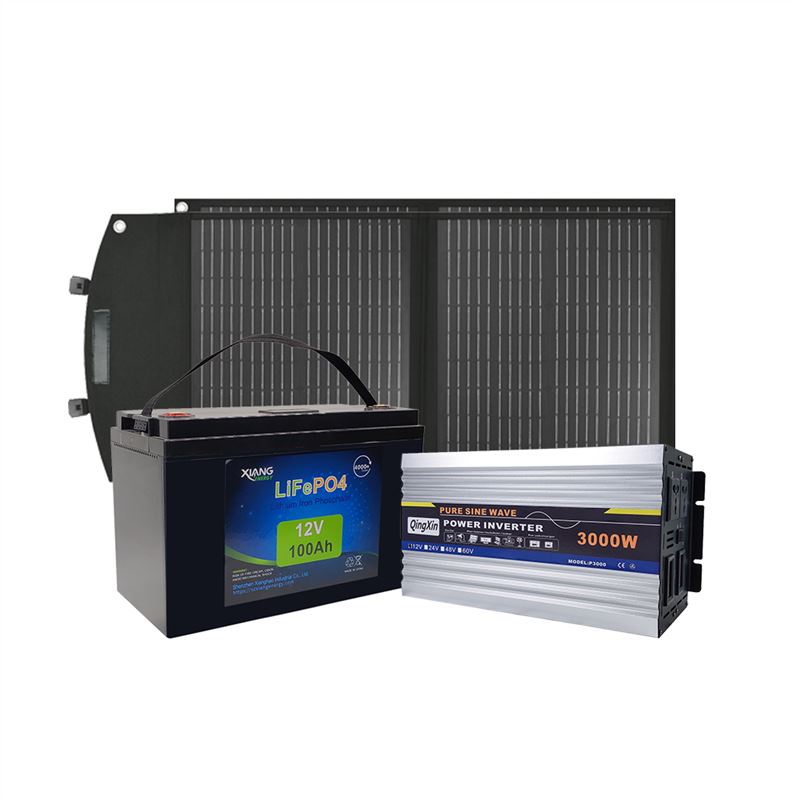

12V combined battery

About this item XIANGHAO 12V 100AH group rechargeable free battery - UL Certified Dimensions: 12.09 inches x 6.65 inches x 8.48 inches. Listing is for the Battery and Screws only. No wire harness or mounting accessories included. spill proof battery has a characteristic of high discharge rate, wide operating temperatures, long service life and deep discharge recover. Rechargeable battery that can be mounted in any position, resists shocks and vibration. Long lasting high performance in high and low temperatures. full 1 year warranty.

Item
General Parameter
Remark
Battery type
LiFePO4 Battery

Standard capacity(
0.2C)
100Ah

Rated voltage
12.8V
(Work voltage)
Rate Power
1280Wh

Internal Impedance
≤50mΩ
Internal resistance measured
at AC 1KHZ after 50%
charge
Max.Charge voltage
14.6V
(Voltage of Charger
Selection)
Cut-off voltage
10V
BMS discharge voltage cut-
off
Standard charge current
50A
(Max charge current 50A)
Continuous discharge current
0~100A

Max Continuous discharge current
300A
(30 ms)
Battery dimension
332±3x172±2x220±3mm

Total weight(Approx.)
Approximately 11.5kg

Charge method (CC/CV)
Standard
0℃~60℃
Charge
Discharge
-20℃~60℃

Storage
-20℃~45℃

Capacity @ shipment
50%-60%
