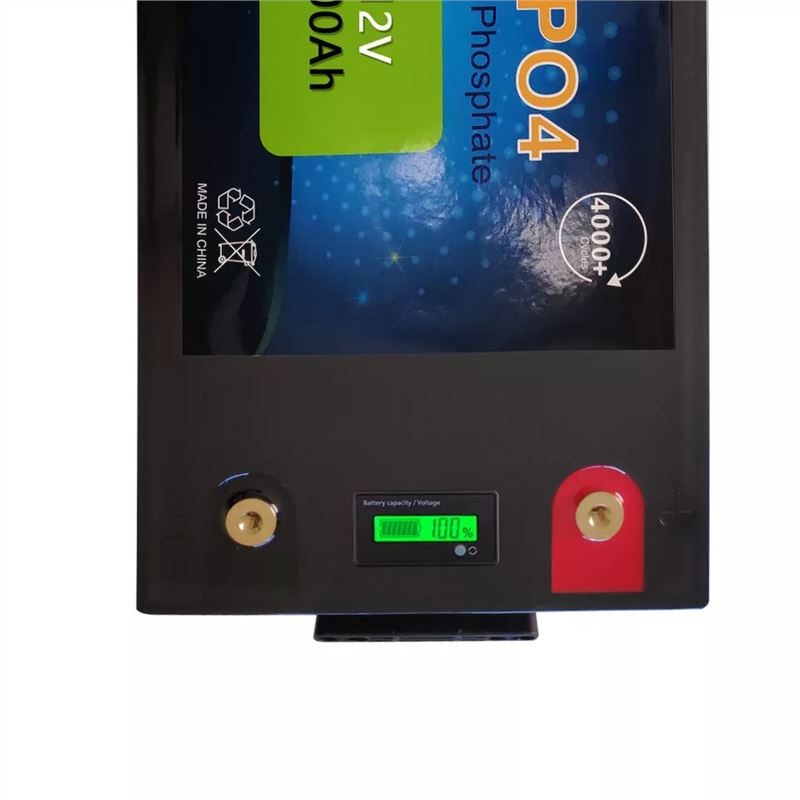

12V 200ah

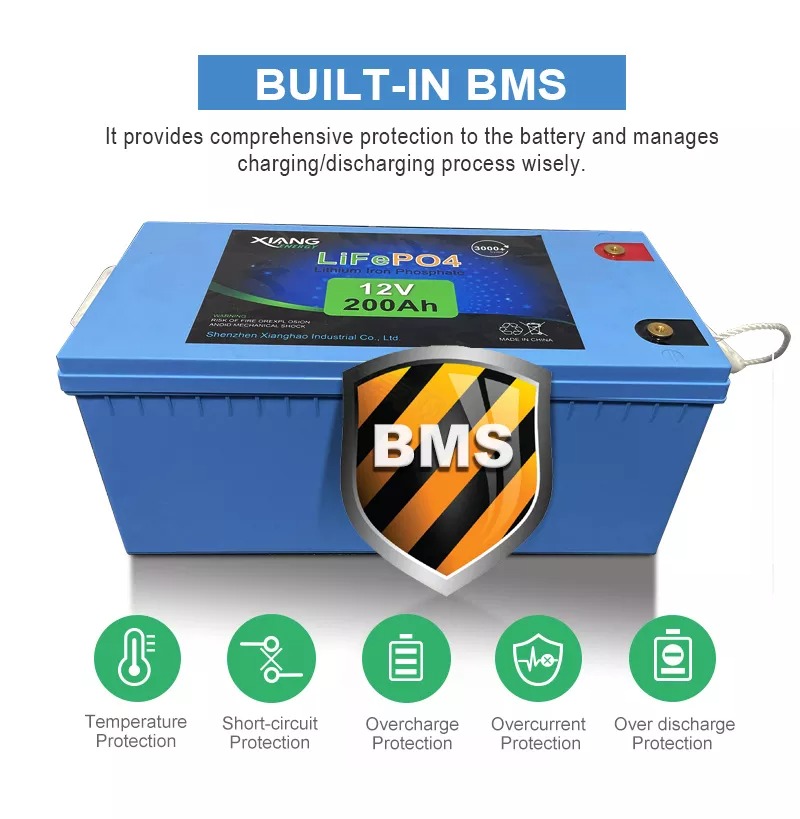

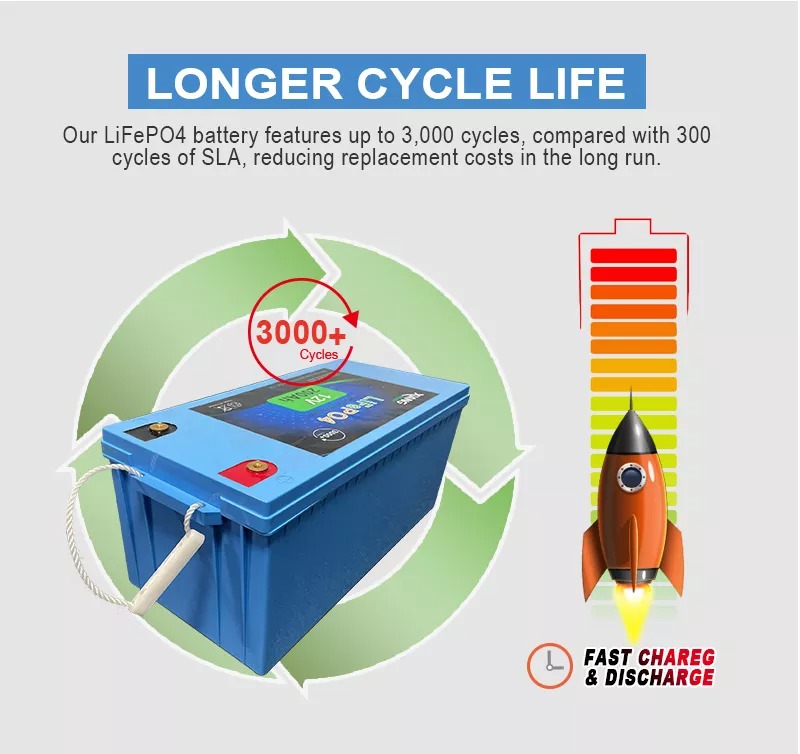

DESCRIPTION 【Uncompromising Quality】 State-of-the-art battery cells ensure a lifespan of more than 2000 cycles, 200A continuous discharge current, and a wide operating temperature range. 【Easy Upgrades】 Upgrades to lithium seamlessly with the standard BCI group size but a greater energy density, a deeper discharge capability, a higher round-trip efficiency, and a faster charging speed. 【Reliable BMS System】 The state-of-the-art battery management system (BMS) with high-performance dual-processors provides short circuit, over charging and over-temperature protection while maintaining a balanced voltage across all cells. 【Low Temperature Protection Function】 The lithium battery has low temperature charging and discharging protection function. When the temperature is below 0℃, it will stop charging. When the temperature is below -20℃, it will stop discharging. 【Auto-balancing Function】 Easily connect multiple batteries in parallel with the auto-balancing function, improving the average charging efficiency for your batteries in the long term. 【Real-time monitoring】 Monitors the battery operation status on mobile devices in real time with the built-in Bluetooth module.

Item
General Parameter
Remark
Battery type
LiFePO4 Battery

Standard capacity(
0.2C)
200Ah

Rated voltage
12.8V
(Work voltage)
Rate Power
2560Wh

Internal Impedance
≤50mΩ
Internal resistance measured
at AC 1KHZ after 50%
charge
Max.Charge voltage
14.6V
(Voltage of Charger
Selection)
Cut-off voltage
10V
BMS discharge voltage cut-
off
Standard charge current
50A
(Max charge current 50A)
Continuous discharge current
0~100A

Max Continuous discharge current
300A
(30 ms)

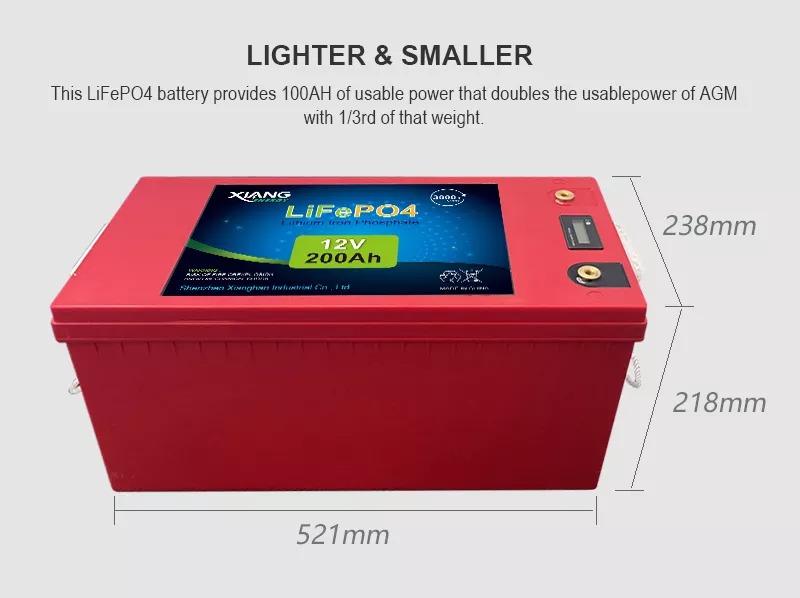

Battery dimension
521±3x238±2x218±3mm

Total weight(Approx.)
Approximately 21kg

Charge method (CC/CV)
Standard
0℃~60℃
Charge
Discharge
-20℃~60℃

Storage
-20℃~45℃

Capacity @ shipment
50%-60%
