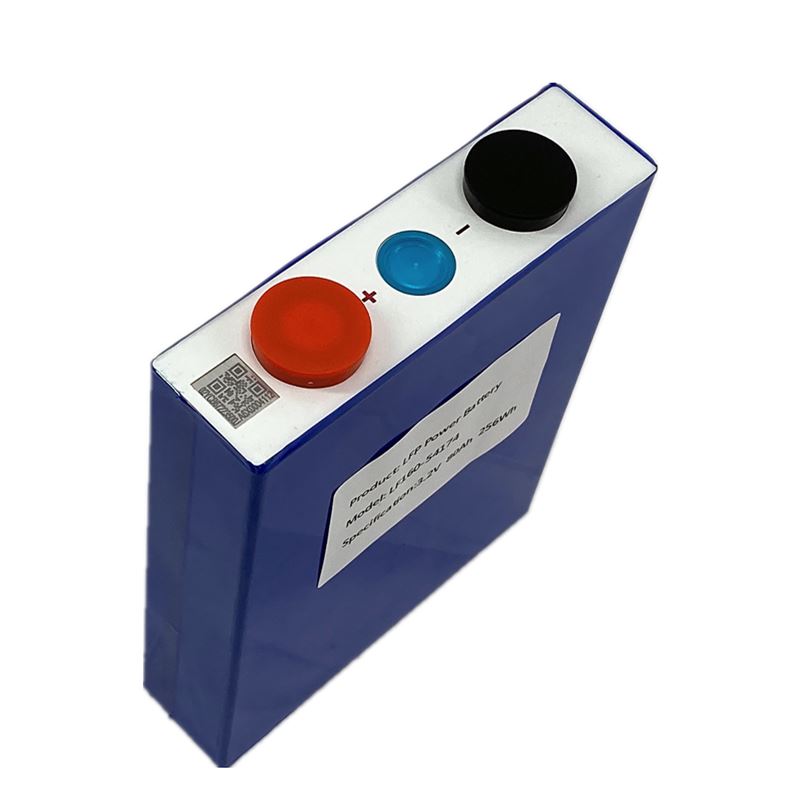

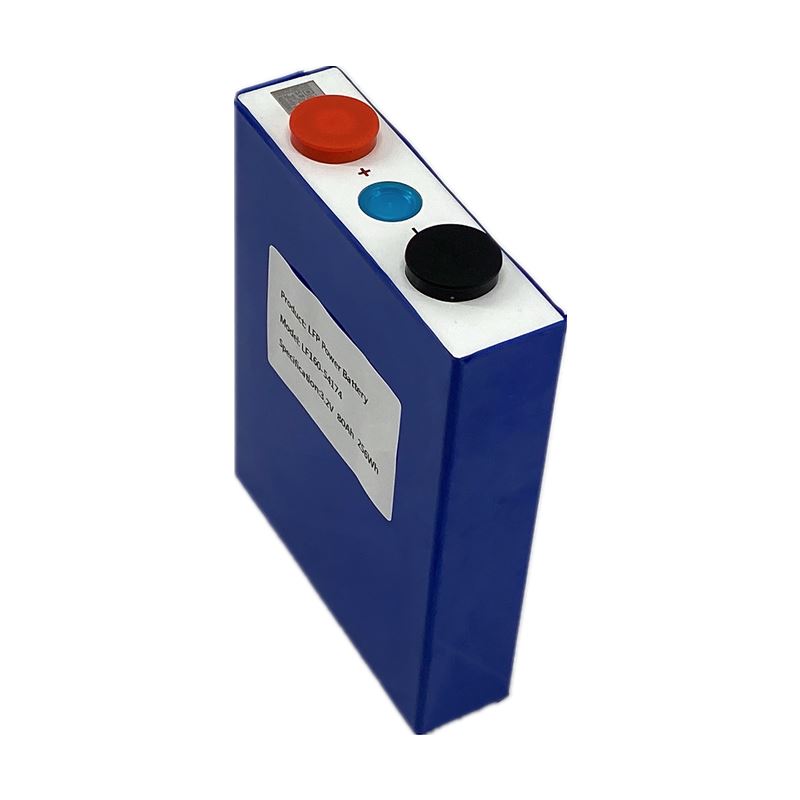

3.2V 80AH

CE, UL, MSDS and UN38.3 have been approved.(LYTH-LFP80)3.2V 80Ah Lithium Iron Phosphate(LiFePO4) battery cells was already passed all of the safety tests(overcharge, overdischarge, AGV (Automated Guided Vehicle),RV( Recreational Vehicle) over temperature, short circuit, drop, crush, needle puncture tests, etc). These battery cells do not catch fire, no explosion and no leakage.

GET QUOTE

Specification

Project		Parameter	Remark
Minimum capacity		80Ah	(25 ± 2)℃,Standard charge and discharge
Nominal voltage		3.2V
Internal resistance(1KHz)		≤0.25mΩ
Standard charge and discharge	Charging / discharging current	0.5C/0.5C	(25 ± 2)℃
	Charging / discharging current cut-off voltage	3.6V/2.5V
The maximum charge / discharge current	Continuous charging / discharging	1C/1C
	Pulse charge / discharge	1C/3C
Recommended SOC use window		10%~90%
Charging working temperature		0℃~55℃
Discharge working temperature		-20℃~ 55℃
Storage temperature	Short-term (within 1 month)	-20℃~ 45℃
	Long-term (within 1 year)	0℃~ 35℃
Storage humidity		＜70%
Monthly self-discharge rate		≤3%/monthly	(25 ± 2)℃，30%~50%SOC storage

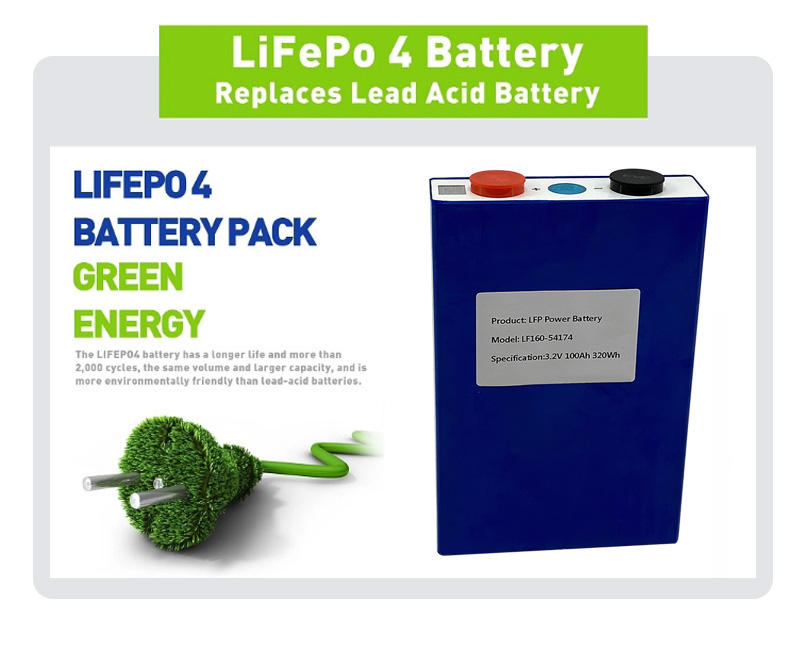

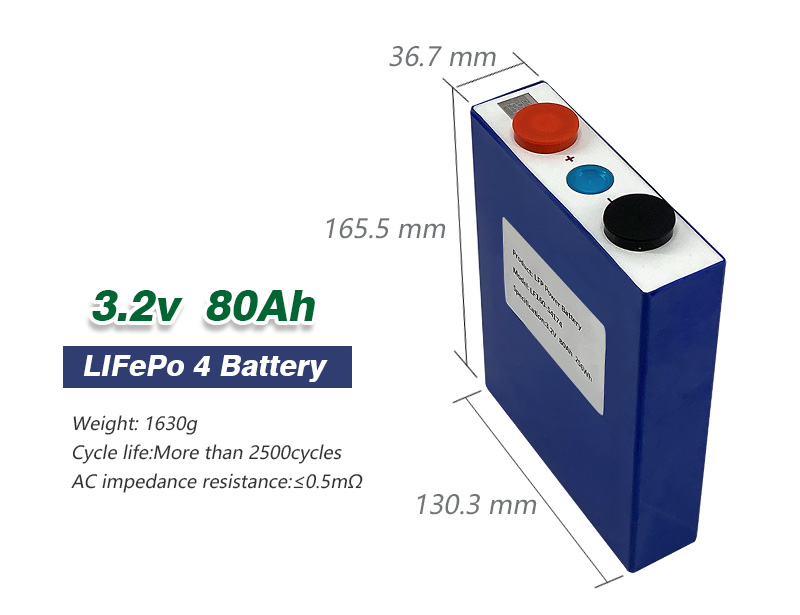

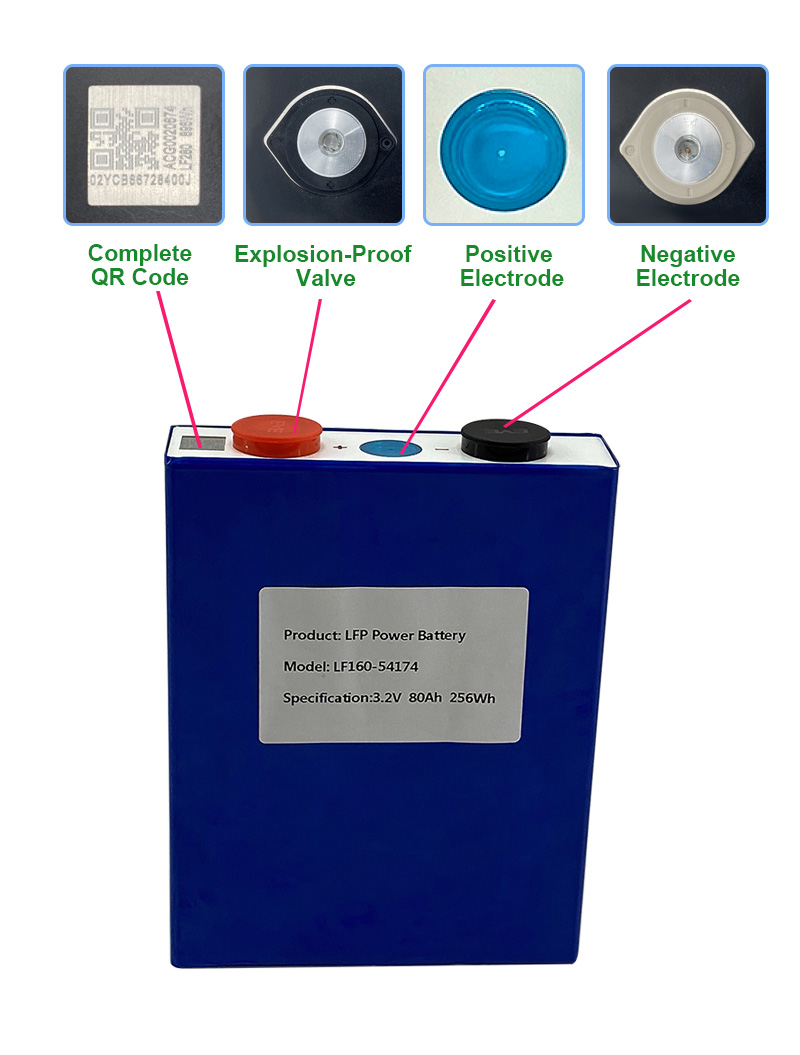

详情2.jpg 80ah 详5.jpg 80ah 详4.jpg 详情3.jpg

XIANGHAO Battery – The Best Partner for your Lithium Battery Solution & High Performance LiFePO4 Prismatic Battery. XIANGHAO LiFePO4 cells have a wide range of applications, such as utility and renewable (solar and wind) energy storage,electric vehicles,uninterruptible power supply (UPS) for data centers,cell tower/communications power,marine vessels,stationary power generators AGV (Automated Guided Vehicle),RV( Recreational Vehicle) and much more.

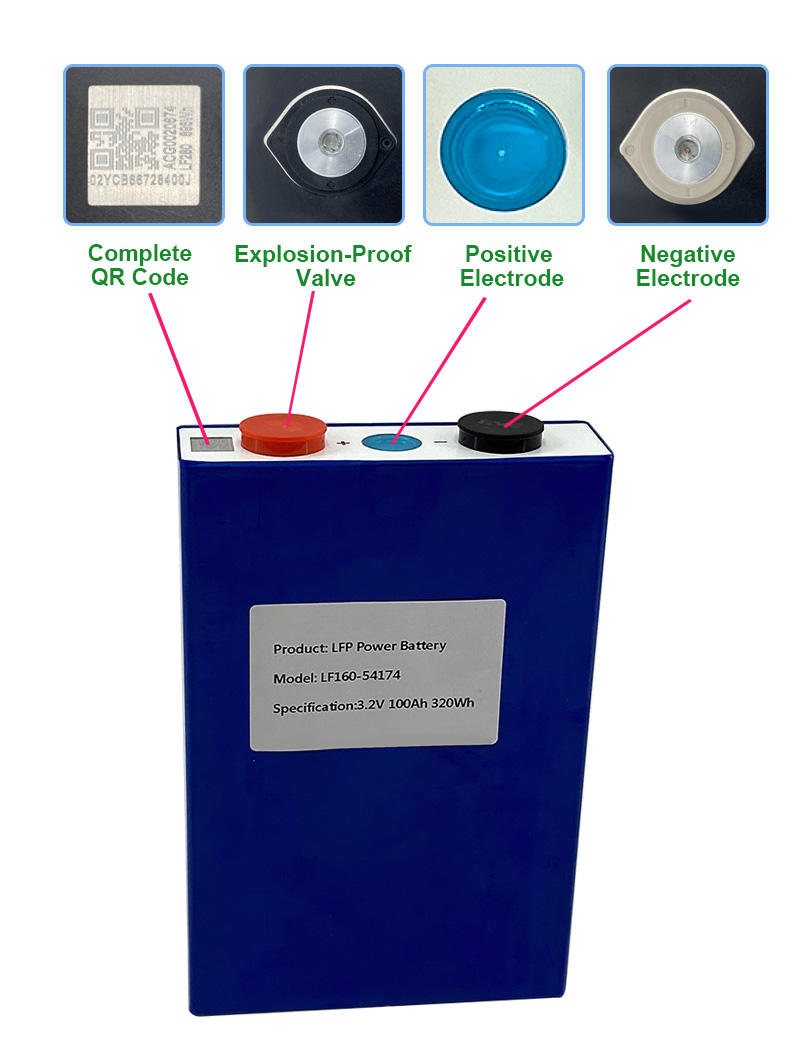

详情4.jpg 80ah 详6.jpg
