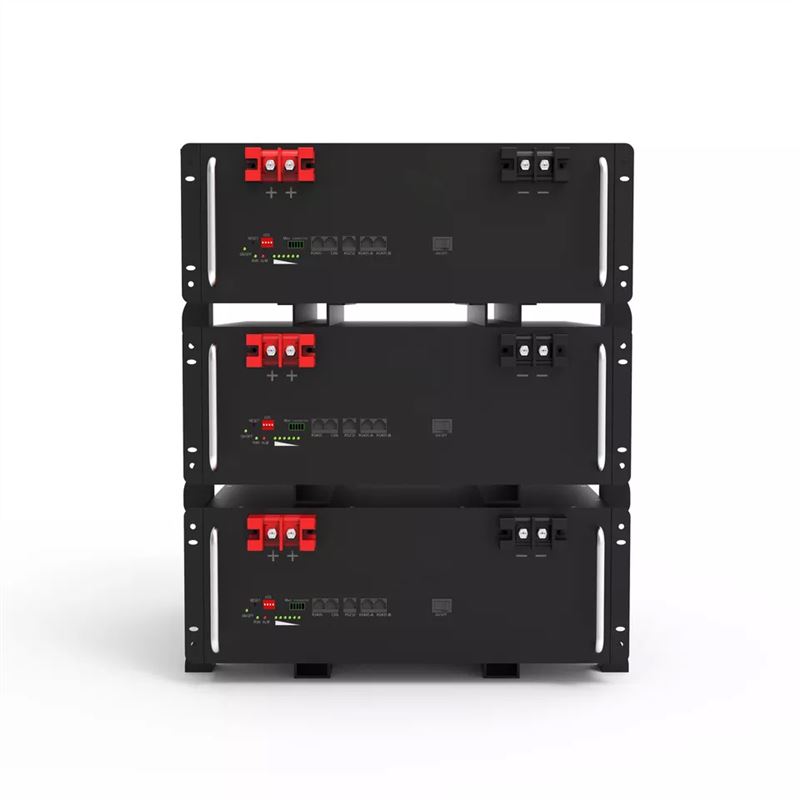

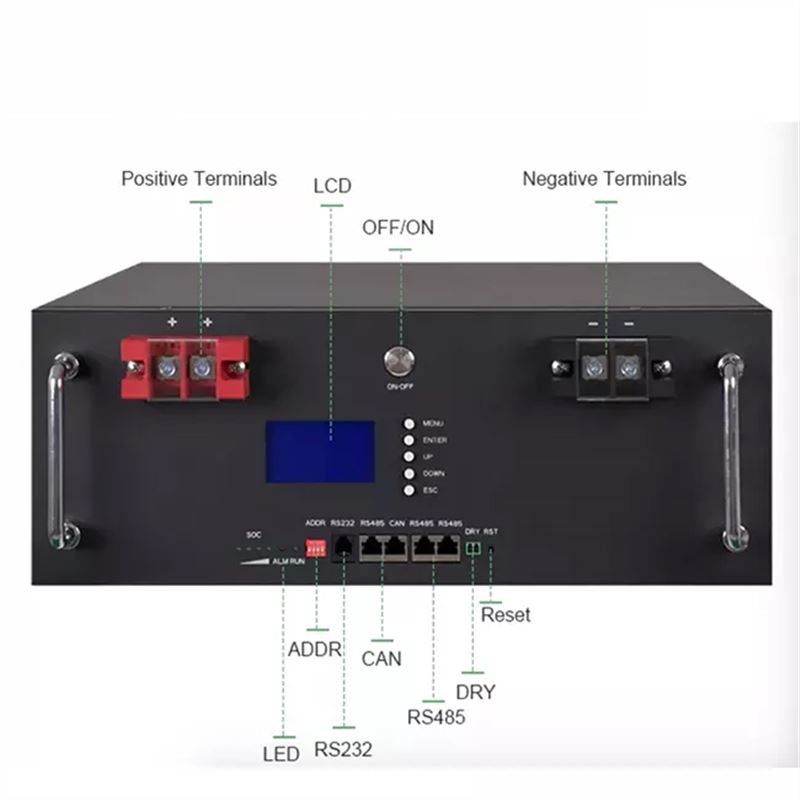

51.2V 200ah

•Solar Storage •Switching applications and more •Base transceiver station •Communication equipments •Central office •Telecommunication systems •Electronic cash registers •Microprocessor based office machine •UPS

GET QUOTE

Items	Specifications
Charge voltage	DC 58.4V
Nominal voltage	58.4V
Nominal capacity	200Ah
Energy	10.24KWh
Charge current	Standard charge（标准充电）: 0.5C Approx 3 Hour（约 3 小时） Rapid charge（快速充电）: 1C Approx 1.5 Hour（约 1.5 小时）
Standard Charging method	0.5C.CC (constant current) charge to 58.4V, then CV(constant voltage 58.4V) charge till charge current decline to 0.05C
Max. charge current	100A
Max. discharge current	200A
Max.Pulse Current	400A（3s）
Discharge cut-off voltage	40V
cell & Method	(3.2V100Ah)16S1P 力神-200Ah
Operating temperature	Charging(充电): 0°C ~ 45°C Discharging（放电） : -20°C ~60°C
Storage temperature	- 10°C ~ + 45°C
Battery Weight	Approx.：79.4 kg
Battery Dimension	483mm463mm234mm(WHD)
Battery outgoing voltage	52~54.4V
Thermal sol fire extinguishing device	NO
