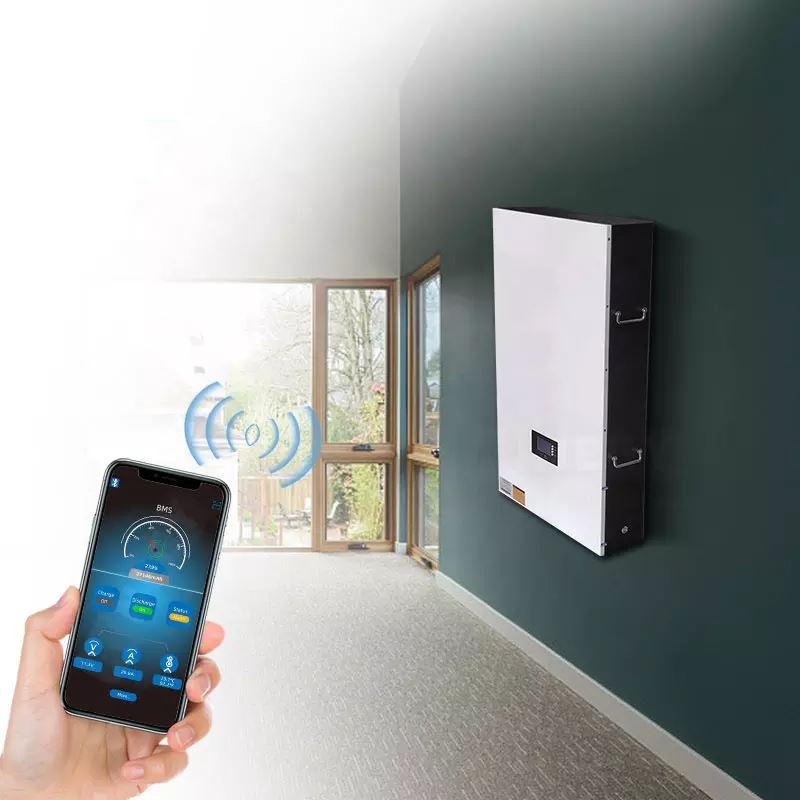

Indoor wall mount lithium battery pack

China’s professional lithium iron phosphate battery manufacturer has, High cycle life. 48V 100Ah lithium-ion battery A+ Prismatic Cells for OEM, Commercial, and Industrial Applications.

GET QUOTE

Items	Specifications
Charge voltage	DC 54.75V
Nominal voltage	48V
Nominal capacity	100Ah
Energy	4.8KWh
Charge current	Standard charge（标准充电）: 0.5C Approx 3 Hour（约 3 小时） Rapid charge（快速充电）: 1C Approx 1.5 Hour（约 1.5 小时）
Standard Charging method	0.5C.CC (constant current) charge to 58.4V, then CV(constant voltage 58.4V) charge till charge current decline to 0.05C
Max. charge current	50A
Max. discharge current	100A
Max.Pulse Current	150A（3s）
Discharge cut-off voltage	37.5V
cell & Method	(3.2V100Ah)15S1P ZHONGYUANIFP105
Operating temperature	Charging(充电): 0°C ~ 45°C Discharging（放电） : -20°C ~60°C
Storage temperature	- 10°C ~ + 45°C
Battery Weight	Approx.：55 kg
Battery Dimension	580mm400mm160mm(WHD)
Battery outgoing voltage	48~51V
Thermal sol fire extinguishing device	NO
