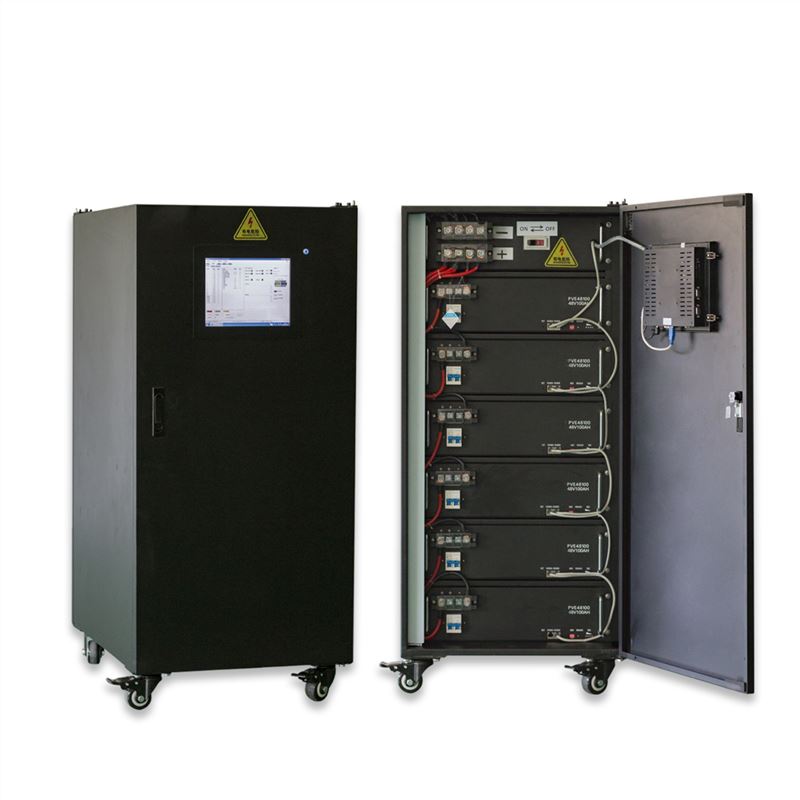

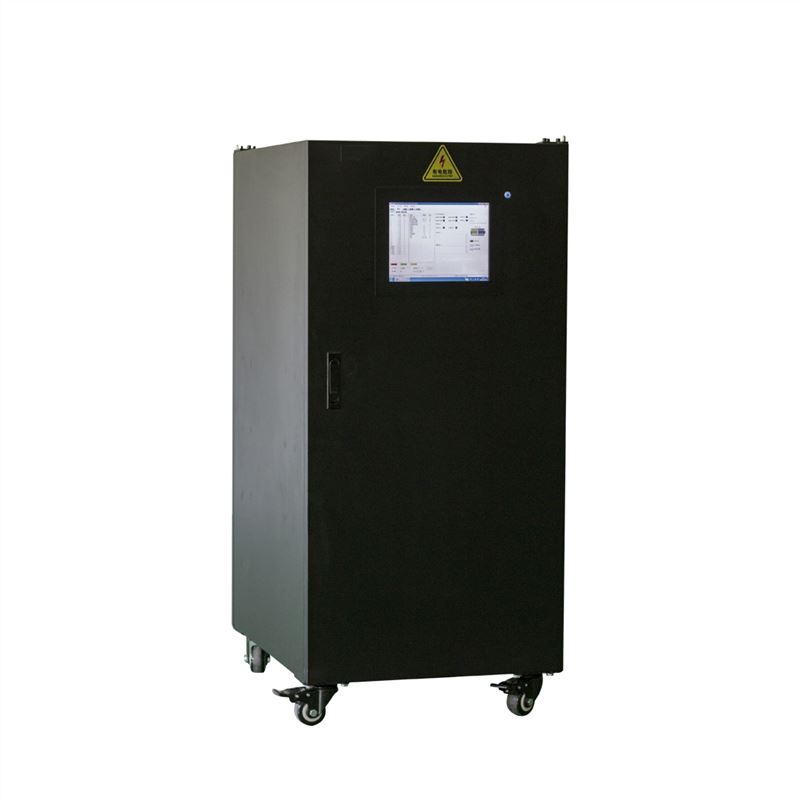

XIANGHAO Energy Storage Systems Companies

XIANGHAO Energy Storage Systems Companies

Sustainable Energy Storage Solutions Companies Take control of your energy supply, cut your bills, and move towards a more sustainable future. With our energy storage systems, homes, businesses, stadiums, and cities gain access to safe, reliable, and efficient power management that harnesses the full potential of renewable sources. As renewable energy production increases, operators are challenged to supply reliable energy at premium cost-efficiency. XIANGHAO Energy Storage solutions promote on-demand, dispatchable renewable power, increase profitability during fluctuating demand, optimize on-site power sources, capitalize on peak loads (while reducing demand charges), increase conventional power plant flexibility, and provide operating reserves while improving the security of your energy supply. Our team uses innovative design and simulation tools to tailor an agnostic technology portfolio to your specific requirements. What are you waiting for? Become your own energy supplier now. With our XIANGHAO energy storage systems, your self-produced energy is available anytime as a proportion of the consumption of your own power increases by up to 80%. This brings you energy-autonomy and can protect you from increases in electricity costs.

GET QUOTE

Item		50KWh Product	Remark
Nominal Energy		50.3KWh	---
Nominal Capacity		126Ah	±5% @25℃
Nominal Voltage		400V	---
Absolute Maximum Voltage		453.6V	---
Cut-off Voltage (discharging)		324V	---
Configuration		108S7P	---
Continuous Charge		120A
Continuous Discharge		120A
Recommended Depth of Discharge		90%	---
Maximum Depth of Discharge		100%	---
Weight		<420Kg	---
Cooling		Natural cooling	---
Ingress Protection		Indoor	---
Storage Humidity		25% ~ 95%RH
Operating Humidity		0 – 90% RH
Storage Temperature		-20℃~40 ℃	SOC>30%，one full charge needed per two months
Storage Temperature	Discharge	-20 ℃~60 ℃	Long term use below 0℃, can choose electric auxiliary heating function.
	Charge	0 ℃~55 ℃



Welcome to every household: Our energy storage systems.

There is a suitable solution for all kinds and sizes of residential premises: an apartment or a house.


Benefit from 10 years of experience.

The XIANGHAO brand stands for 10 years of experience and innovative battery solutions. By choosing our brand, you opt for a reliable partner to accompany you on the way into the future.

Energy Storage Systems

INDEPENDENT. SAFE. FLEXIBLE.

At a glance: Our top four

Energy storage systems requirements may vary depending on the building type,

however, any technical solution must guarantee reliable operation and safety.

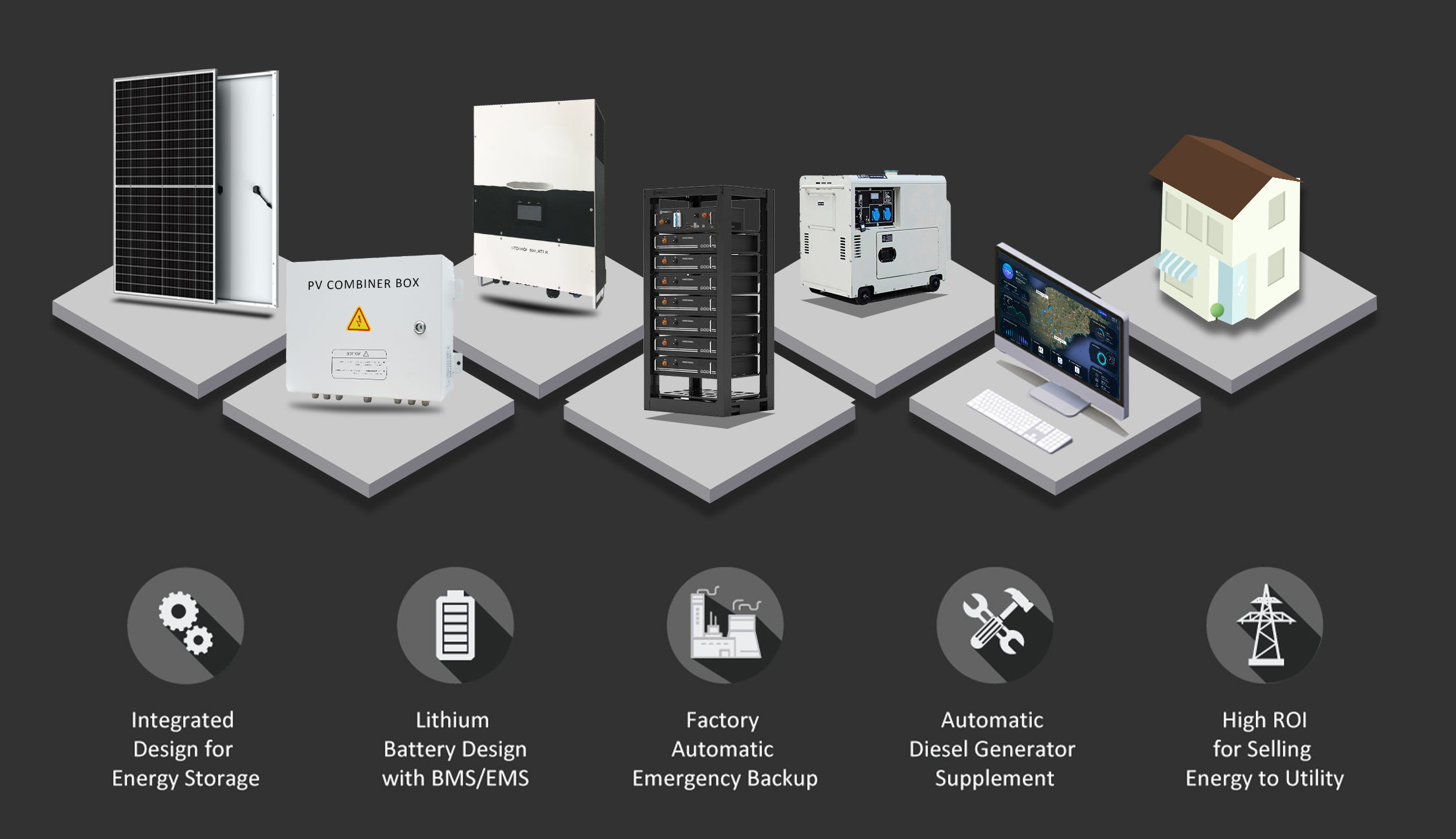

Components

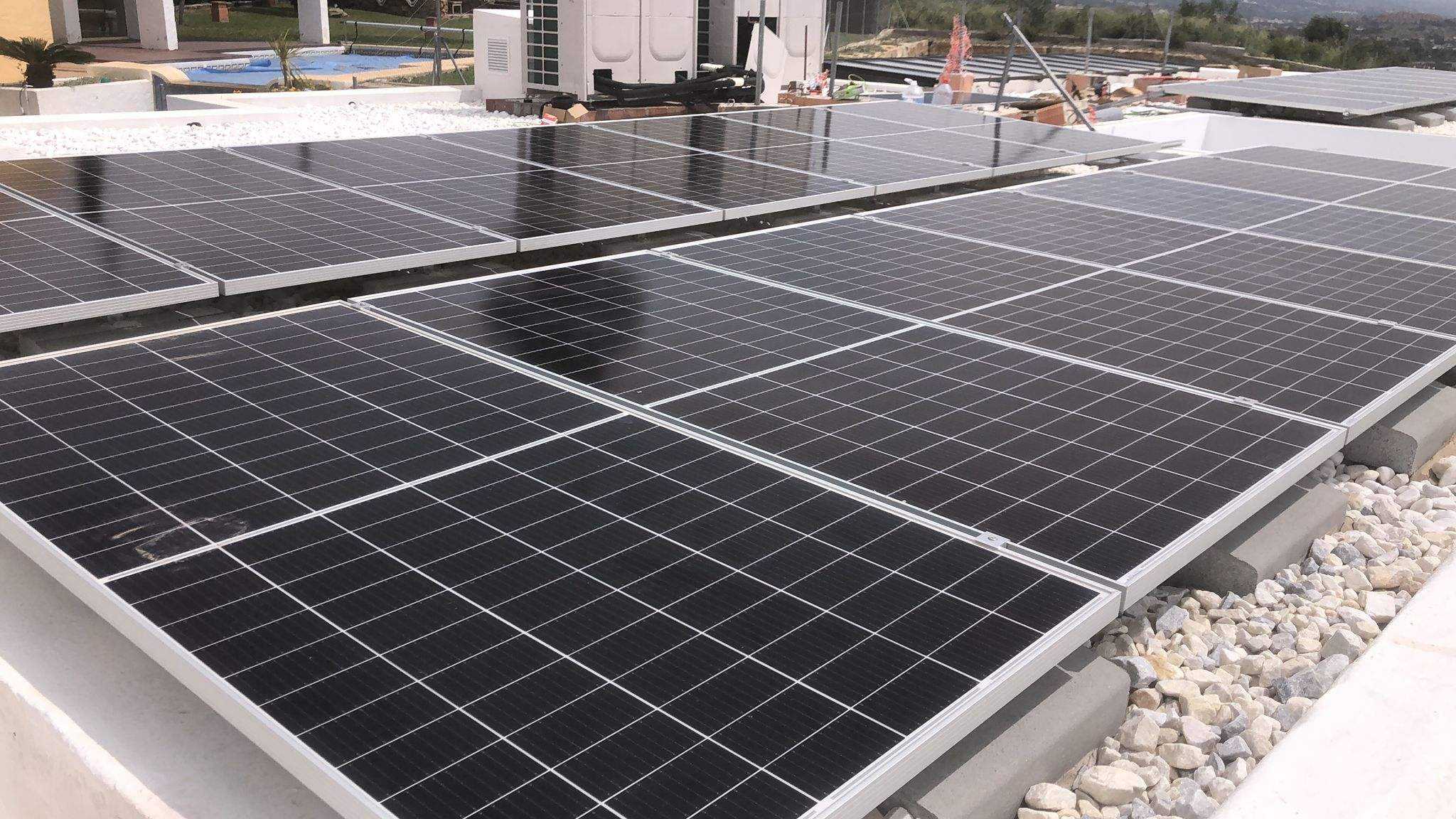

Solar Panels

* PID Free PV Module
* 0-5W Positive Power Output Guarantee
* 25 Years Power Output Guarantee
* 100% Double Full EL Inspection

Hybrid Inverter

*Automatic Switch to charge loads, batteries or from Grid backup with priority setting function;
*Lithium Battery and GEL storage battery compatible with almost all types of inverters;
*Comprehensive WIFI monitor

Solar Battery

Lithium and GEL Storage Batteries Optional;
100Ah/150Ah/200Ah, with 100kwh/300kwh/500kwh capacity;
BMS Communication matched with almost all types of hybrid energy inverters;
Installation is convenient with cable, rack etc Accessories ready in package.

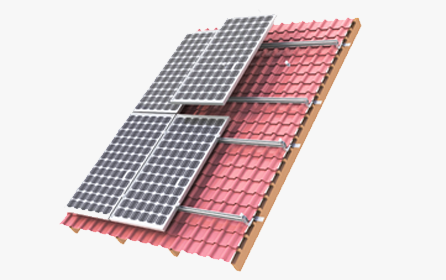

Mounting Structure

Free design with CAD drawing
Customized for :
Rooftop(Flat/Pitched), Ground , Car Parking Lot
Adjustable tile angle from 0 to 65 degree
Compatible with all solar modules.

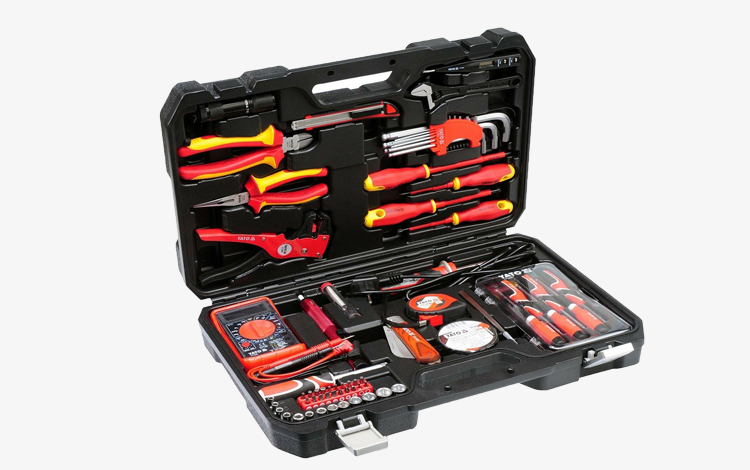

Installation Tools Box

*Include all necessory tools for installation
*Connector spanner,  Crimping pliers
PV Combiner Box, PV Cable installation tools etc.

XIANGHAO Energy Storage Systems Company

The basic idea of energy storage is the ideal management of the differences between the generation of electricity through a PV system and the actual consumption of electricity in the household. Rising electricity costs and simultaneously falling feed-in tariffs are additional factors to be taken into account. XIANGHAO Energy Storage allows the production and storage of your own energy supply and significantly optimize your energy costs. Our energy storage units are characterized by the highest quality and reliability and are designed for long service life. The product portfolio offers a wide range of energy storage solutions to find the perfect one for every demand.

IDEAL COOPERATION.

The more, the better. The integration of multiple energy storage systems of the same type in combination with smart energy management significantly increases your storage capacity.


THE BEST CONNECTION

Your energy storage system is a part of the building automation system and can be interconnected in many different configurations, so it can be regulated for storing or discharging energy. However, there are many more great features. By cascading up to five XIANGHAO energy storage systems of the same type, you can increase the total gross capacity of the energy storage system to up to 50 kWh. Adapting to increasing demands with no effort.

How is the weather at home?

Does the sunshine?

Does my photovoltaic system produce electricity?

Does my XIANGHAO energy storage system currently safe power or does it serve consumers in the house?

Everything simple, understandable, and directly at a glance.

Technical Service & Sales Support

Our high-quality standards apply to both: Our product and our service.

Our technical service and sales staff are your partners. Open, direct, and demand-oriented communication is important to us.
