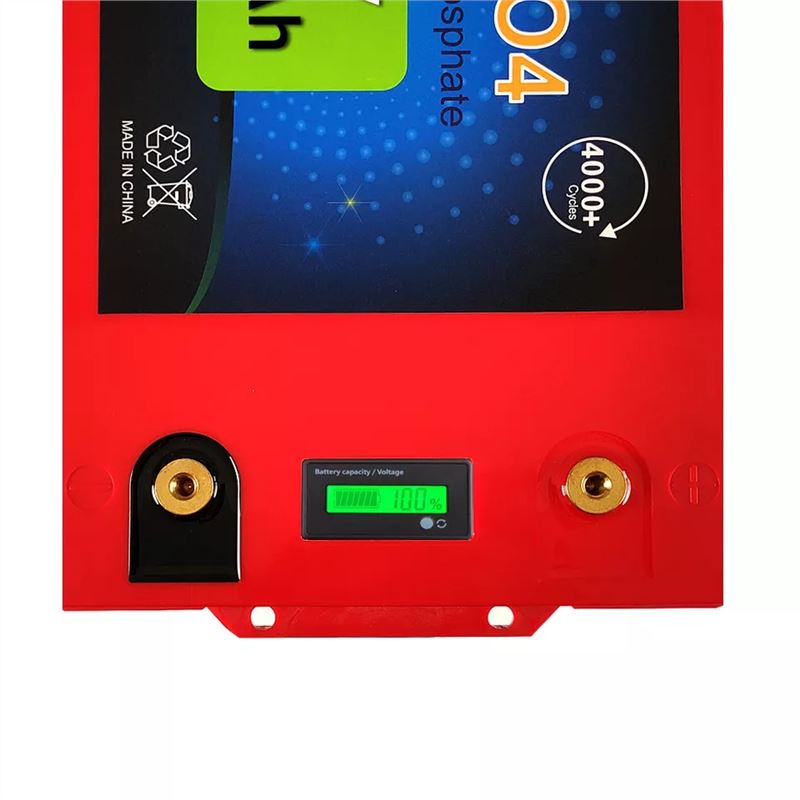

24V 100ah

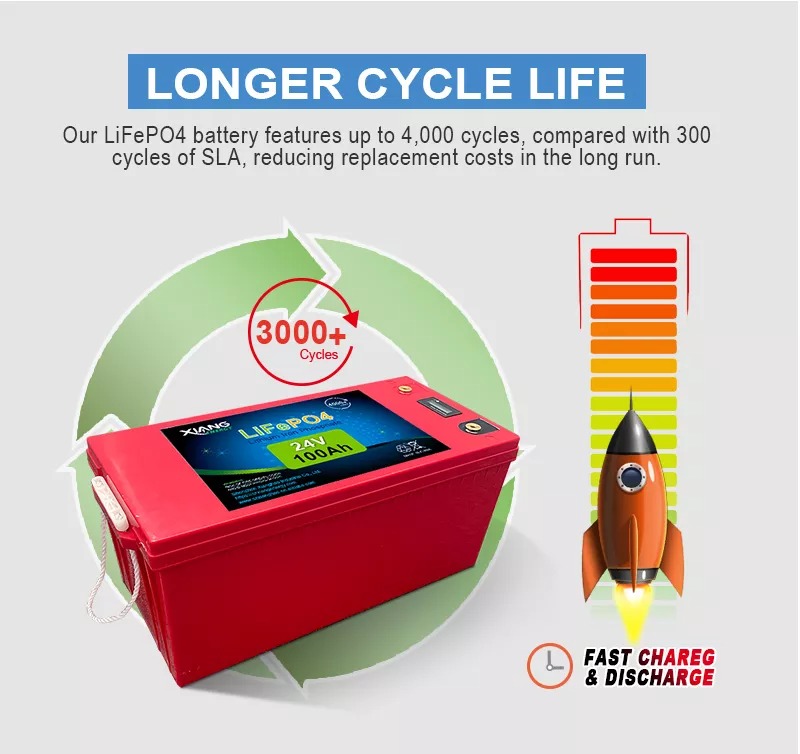

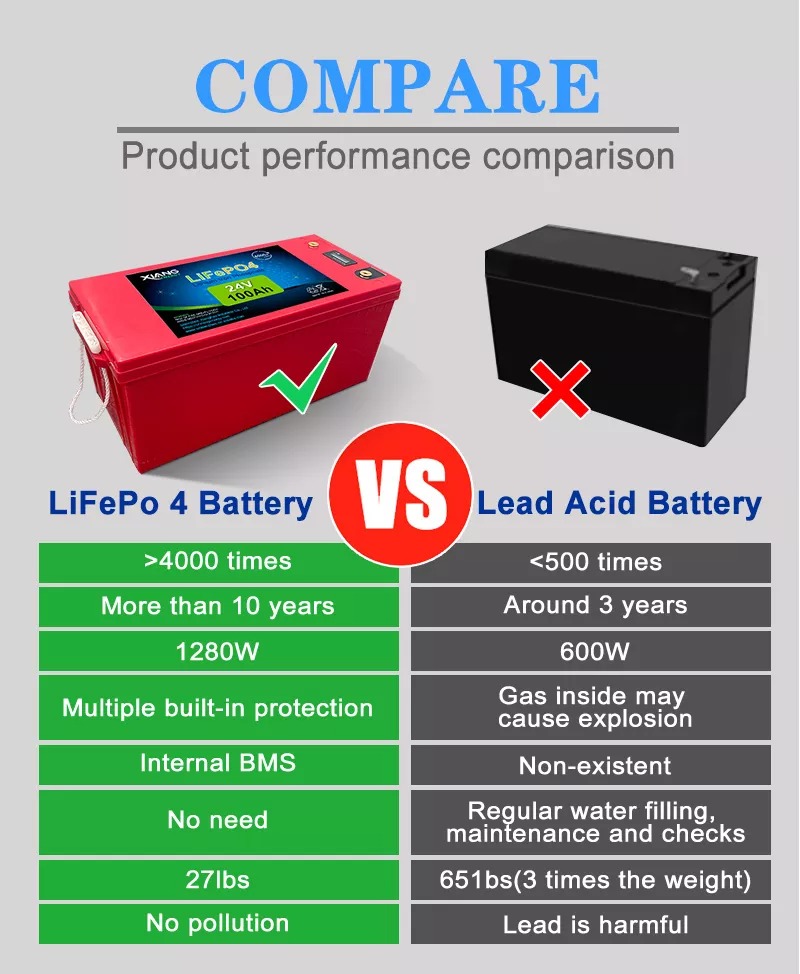

【Automotive Grade Lithium Battery】XIANGHAO lithium iron batteries have exceptional quality since they are manufactured by Automotive Grade LiFePO4 Cells with higher energy density, more stable performance & greater power. Highest-level safety based on UL Testing Certificate for the cell inside the battery. With no acid in the battery, you're able to safely mount in any position. This makes li-iron batteries perfect for solar home, RV, campers,motor homes, off-grid applications. 【10 Years lifetime】XIANGHAO Battery LiFePO4 battery provides 4000~8000 cycles, which is more than 10 times to Lead Acid with 200~500 cycles. Ampere Time LiFePO4 battery has a 10-year service life, three times longer than the Lead Acid’s 3-year . 【1/3 Lightweight 】XIANGHAO LiFePO4 Battery weighs only 47.4 lbs for one module, only 1/3 the weight of lead acid batteries, which makes it an easy choice for RVs, Marine and Off-Grid Applications when mounting or mobility is in the consideration. 【95%* Efficiency】 XIANGHAO LiFePO4 battery’s flat discharge curve holds above 12.8V for up to 95%* of its capacity usage, providing astronomical boosts in run-time compared to only 50% in Lead Acid. This product is your best choice for outdoor camping power and indoor easy installation. Without memory effect, no matter what state the battery is, it can be used as soon as it is charged. 【100% Protection 】XIANGHAO LiFePO4 battery has built-in BMS to protect it from overcharge, over-discharge, overcurrent, and short circuit with excellent self-discharge rate. Operating Temp: Charge: 0°C~50°C; Discharge: -20°C~60°C. Our battery is IP65 waterproof, setting you free from worrying to install indoors or outdoors.

Items
Specifications
Charge voltage
DC 29.2V
Nominal voltage
25.6V
Nominal capacity
100Ah
Energy
2.56KWh
Charge current
Standard charge(标准充电) : 0.5C Approx 3 Hour(约 3 小时)
Rapid charge(快速充电) : 1C Approx 1.5 Hour(约 1.5 小时)
Standard Charging method
0.5C.CC (constant current) charge to 14.6V, then CV(constant voltage 14.6V)
charge till charge current decline to 0.05C
Max. charge current
50A
Max. discharge current
100A
Max.Pulse Current
200A(3s)
Discharge cut-off voltage
10V
cell & Method
(3.2V100Ah)8S1P
Operating temperature
Charging(充电):
0°C ~ 45°C
Discharging(放电) : -20°C ~60°C
Storage temperature
- 10°C ~ + 45°C
Battery Weight
Approx.:18.9kg

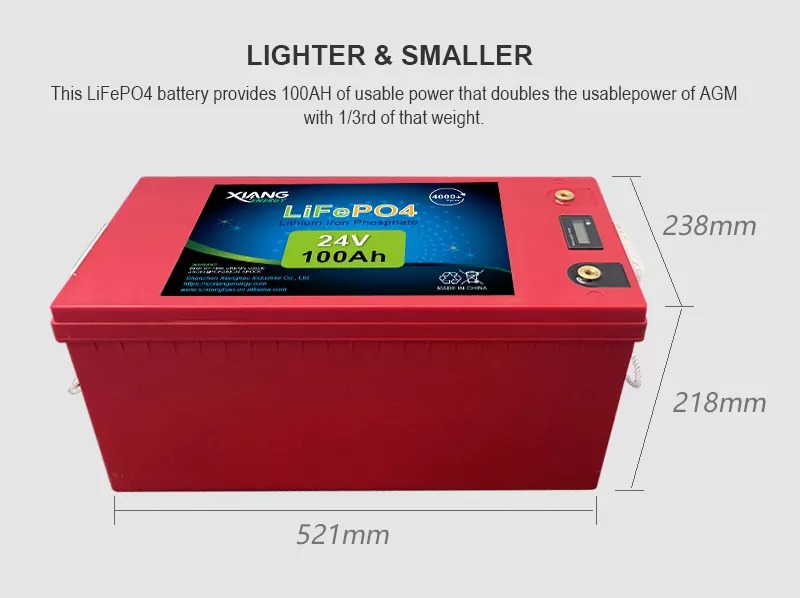

Battery Dimension
473mm*245mm*195mm(L*W*H)
Battery outgoing voltage
25.6~27.2V
Means of communication
NO
